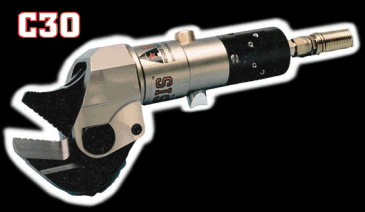

Genesis Series
C-30 Mini-Cut:
The Genesis
Series C-30 Mini Cutter is a compact cutter designed for
one-hand operation. It is excellent for confined space use
and is ideal for use under a vehicle dashboard. The C-30
Mini Cutter is used to cut brake pedals, steering wheel
rings, gear shift levers...and most obstacles under a
vehicle dashboard. The C-30 Mini Cutter can be used as a
small spreader. The tip of the cutting blades have a
machined surface for gripping. This spreading capability
helps when placing the tool to make a cut. The Genesis
Series C-30 Mini Cutter is designed for "one-handed"
use. When working in confined spaces, the push-button
control valve and lightweight make this tool easy to
position. Besides being an excellent tool for vehicle
rescue, it is also used for forcible entry and building
collapse. |
|

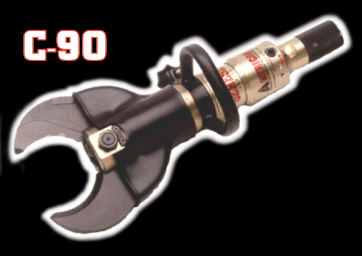

Genesis Series
C90:
The Genesis
C-90 Cutter is the lightweight leader. Power and lightweight
in a compact package. The classic "C" blade design allows
the user to wrap around the piece being cut. Perfect for
roof posts, door hinges, Nader pins and seat brackets. The
adjustable "D" shaped handle makes it easy to use this
cutter in any position; even overhead. This classic cutter
should be in every rescue arsenal. |
|

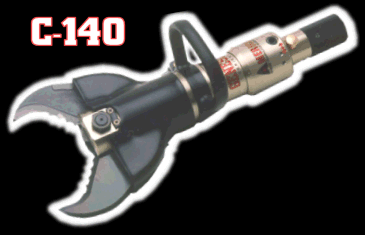

Genesis
Series C140:
The
lightweight, compact design of the Genesis C-140 cutter make
it perfect for those situation where a larger cutter won't
fit. The "D" handle can be removed to make the C-140 even
smaller for those tight jobs. The serrated blades on the
C-140 cutter require less force to make a cut. The
serrations make many small cuts rather than one large one,
this reduces the power needed for cutting. The C-140 cutter,
power and speed in a compact design.
|
|

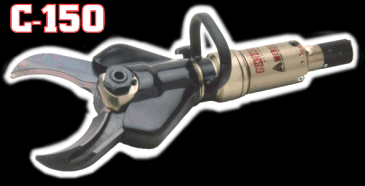

Genesis
Series C150:
The Genesis
C-150 Cutter offers the power and versatility of our C-180
cutter with the smooth blades of a conventional cutter. The
wide opening makes it possible to cut "B" and "C" posts with
one cut. The longer blades make a deeper cut. The is
especially useful when making relief cuts for third door
conversations. The C-150 cutter easily cuts through steering
columns, door hinges and Nader pins. The C-150 cutter has
the power to get the job done. |
|

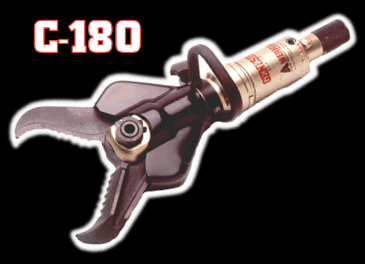

Genesis Series C-180:
The Genesis
C-180 Cutter is the ultimate cutting tool. This powerful,
lightweight cutter is designed for heavy duty use. The C-180
cutter has enough power for use on buses, trucks or any
disaster scene. The state-of-the-art blade design allows it
to cut using less force. The serrations in the blades allow
this cutter to cut through roof posts without the "pop" and
movement associated with standard cutting blades. Power,
dependability and lightweight make this the ultimate heavy
rescue cutter. |
|
Type of Cutter |
C - 90 |
C - 140 |
C - 150 |
C - 180 |
Cutting Force (max) -
lbs/kN |
58,000 /
260 |
58,000 /
260 |
90,000 /
405 |
90,000 /
405 |
Cutter Opening (max) -
in/mm |
4 / 102 |
5.25 /
133 |
6.5 /
165 |
7 / 178 |
Weight - lbs/kg |
20 / 9.1 |
21 / 9.5 |
29 /
13.2 |
29 /
13.2 |
Length - in/mm |
21 / 533 |
21.5 /
546 |
26 / 660 |
26 / 660 |
Width - in/mm |
8.5 /
216 |
8.5 /
216 |
10.5 /
267 |
10.5 /
267 |
Height - in/mm |
6.75 /
171 |
6.75 /
171 |
7.25 /
184 |
7.25 /
184 |
Operating Pressure (max)
- psi/bar |
10,500 /
720 |
10,500 /
720 |
10,500 /
720 |
10,500 /
720 |
Shipping Weight lbs/kg |
23 /
10.4 |
24 /
10.9 |
32/14.5 |
32/14.5 |
Part Number |
ART.017.237.4 |
ART.180.604.1 |
ART.059.569.1 |
ART.059.947.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
