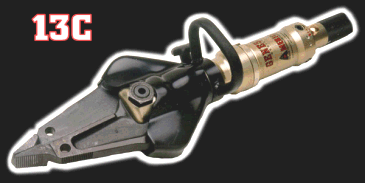

13-C Vario Tool:
The
Genesis Series 13c Vario Tool provides spreading, cutting
and pulling capabilities in one compact package. The 13c
Vario tool is perfect for departments with limited budgets,
it can be combined with a
M-One mini pump
and hose to make an outstanding economical system. The tool
has many features including a D-shaped handle, which can be
rotated 360 degrees or totally removed for use in confined
spaces. Over pressurization protection and quality
construction provide for a long service life. The Genesis
13c Vario comes with an adjustable and removable "D"
handle. Using the arm to spread produces more power, up to
18,000 lbs. |
|

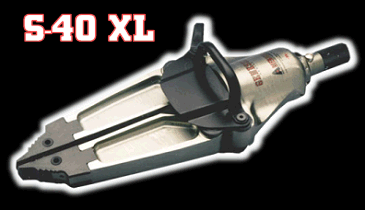

Genesis
Series S-40 XL:
The
Genesis Series S-40XL spreader provides power and
versatility in a lightweight package. Like the S-50XL
spreader, the S-40XL uses the same
"Power Up Front"
technology to give you power when you need it most. The
power-to-weight ratio of this tool makes it a top performer.
It is the ideal tool for automobile, bus and truck
extrication. The S-40XL is the choice of progressive
departments worldwide. |
|

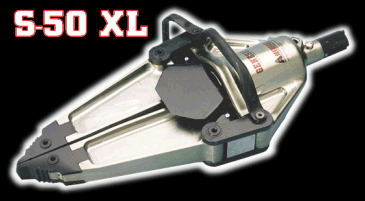

Genesis
Series S-50XL:
You'll
never ask for more power when you are using the Genesis
S-50XL spreader. The S-50XL produces over 34,000 lbs. of
force at the base of the tips and 32" of spread. The S-50XL
uses
"Power Up Front"
technology to give more spreading force at the beginning of
the spread. The S-50XL spreader's geometry provides greater
force at the beginning of the spread, up to 40% more than
comparable spreaders. The S-50XL if the tool for heavy
rescue use. Trains, planes and automobiles...nothing can
slow this spreader down. |
|

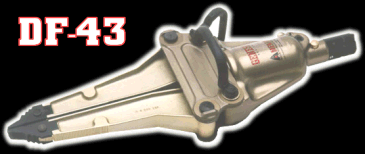

Genesis
Series DF-43:
The Delta Force
spreader is compact and lightweight. It weighs 43 lbs. and
is perfectly balanced to make evolutions seem effortless.
The DF-43 is fast, opening in 9 seconds and closing in 8
seconds. Lightweight with high performance to make
operations easy even for less experienced personnel. Like
all our tools, the DF-43 has or excusive variable speed,
push-button control valve. It allows the rescuer to have
better control of the spreader in difficult situations. The
DF-43 spreader provides all the power needed for most
spreading, lifting and pulling situations. |
|
Type of Spreader |
S - 40XL |
S - 50XL |
DF - 43 |
Spreading Force (max) -
lbs/kN |
29,000 / 132 |
34,500 / 156 |
18,800 / 85 |
Pulling Force (max) - lbs/kN |
12,000 / 55 |
14,000 / 63 |
8,000 / 36 |
Weight - lbs/kg |
43 / 19.5 |
43 / 19.5 |
43 / 19.5 |
Opening - inches/mm |
28 / 711 |
32 / 813 |
24 / 610 |
Length - in/mm |
32 / 813 |
33 / 838 |
31 / 787 |
Width - in/mm |
9.75 / 248 |
13 / 330 |
10.25 / 260 |
Height - in/mm |
8 / 203 |
9 / 330 |
7.5 / 191 |
Operating Pressure (max) -
psi/bar |
10,500 / 720 |
10,500 / 720 |
10,500 / 720 |
Shipping Weight lbs/kg |
46 / 20.9 |
55 / 25 |
46 / 20.9 |
Part Number |
ART.059.952.2 |
ART.059.515.2 |
ART.DF43 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
